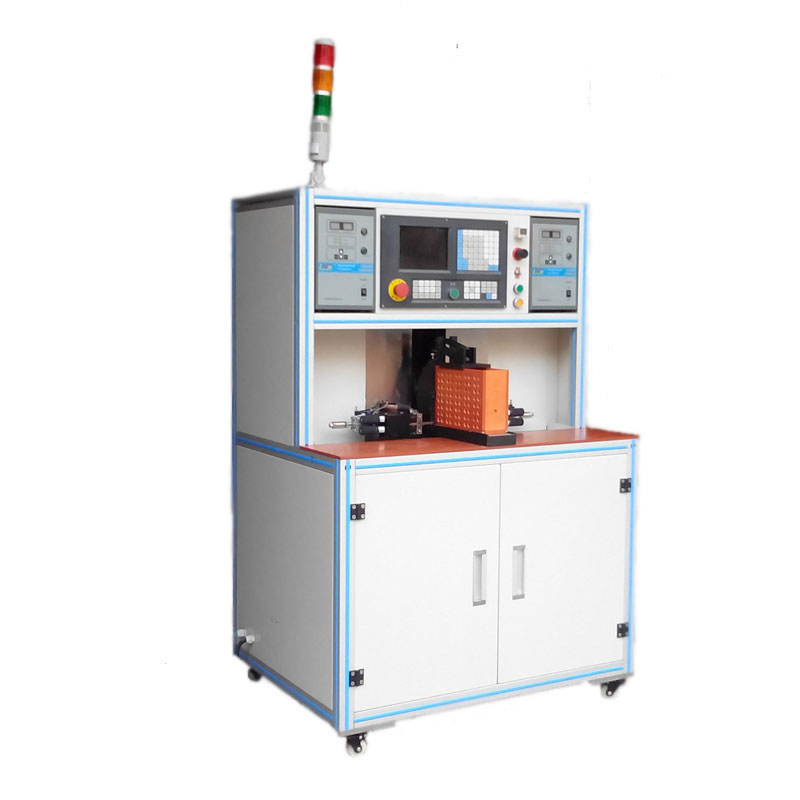

Name :TWSL-600 CNC automatic spot welding
1 , Fully automatic operation. The battery pack into the device to
run automatically, auto fixed clamping welding fixture, sent after
the completion of welding the welding station.
2 , Operating reminder. When the welding is completed a set of
products equipment automatically send voice prompts to alert
workers to operate, reduce labor intensity.
3 , Automatic air pressure detecting when the working pressure is
less than the set requirements will automatically stop, etc. and
then complete the welding meet the requirements.
4 , Intelligence: According to their own customers the flexibility
to design their own products and processing procedures, the
presence of the machine called at any time, very convenient.
5 , Ease of use: Programming Learning is extremely simple to learn
and use, one hour can learn all programming, no cultural foundation
requirements.
6 , Pre-production: It can be preset to produce the combination of
the number reaches the number of automatic stop welding.
7 , Welding Quality: Emotion automated production spot welding
because a high quality stability.
8 , Multifunction adaptation fixture design to reduce the number of
product fixture.
9 , Aesthetic design: Beautiful appearance, make your shop beauty
to enhance the quality will be more satisfied customers to visit
your production capacity.
Technical Parameters:
Model : TWSL-600
Input Power: 220V 50/60Hz 16KVA
Gas source : >0.4MPa <0.9MPa
Applicable products: 18650,26650 cylindrical cells combination
welding
Welding speed: 2S/pcs
Table speed: 25M/mis
Workpiece size : 320-160mm
Start: automatic
operating hours : 20 hours a day
Workpiece handling: Labor:
Control System: General NC control:
Number of controlled axes: 2-3 axis
Programming mode: NC instruction:
Operation and programming difficulty: easy
Drive mode: Stepper (default) / servo
External dimensions: 960 * 720 * 1520
Total Weight: 190KG (including welding)
Welding parameters:
model: TWSL-200
power: 10KVA (max)
Input Frequency: 50/60Hz
Input voltage: 220VAC
Input gas source: 7-8 Bar (kg / cm)
Primary current: 5-30A
Primary short-circuit current: 1500A
The whole structure: Integrated structure
Welding arm structure: Telescopic swing control
Electrodes to the body distance: 100 mm (Scalable adjustable)
Cylinder diameter: 20 mm
The number of pulses : 0-9
Pulse energy level: 0-99
Automatic compensation range: + 40V - 40V
Panel digital display: 7-segment LED display
External dimensions : 445 * 224 * 343 mm
Gross weight : 42 kg
