    TWSL-700 CNC automatic spot welding machine ,18650 Battery pack automatic CNC spot welder

    Ask Lasest Price
    Brand Name : JXC
    Certification : CE ,SGS,ROSH
    Model Number : JXC-700
    Price : USD :6800-9800
    Delivery Time : 5 days after receiving the payment
    Payment Terms : TT ,C/L ,paypal, Western Union
    Supply Ability : 50 sets /month
    • Product Details
    • Company Profile

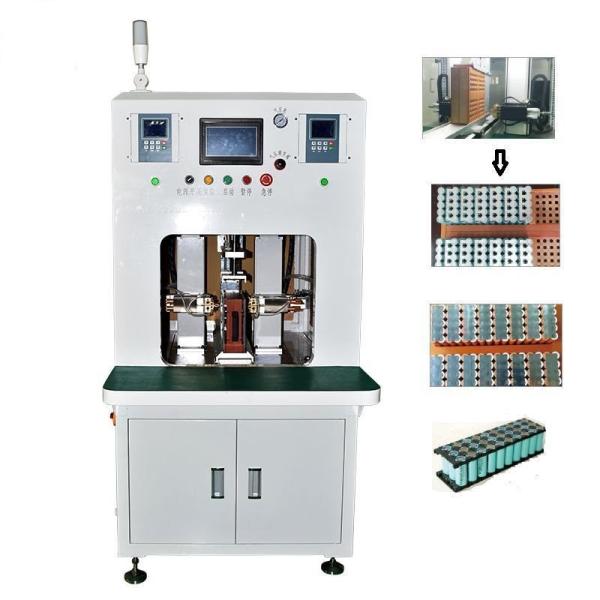

    TWSL-700 CNC automatic spot welding machine ,18650 Battery pack automatic CNC spot welder


    Product Details

    product name: TWSL-700 CNC automatic spot welding machine

    Features:

    1 ,For 18650 battery. Mobile power and other standardized production.

    2 , Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.

    3 , Control system: PLC programming control, with fault alarm system.

    4 , Cooling device comes with solder pin and prolong life.

    5 , X-axis and Y-axis ball screw design, the stepper motor driven.


    Technical Parameters:

    model: TWSL-700

    Power supply : 220V,50HZ 3.6Kw

    Use pressure : 0.3-0.8Mpa

    X Module travel : 0-350MM maximum 18 cores

    Y Module travel : 0-135MM maximum 7 core

    X-axis emission number of batteries : 18PCS within

    Y-axis discharge batteries Number : Within 7 lines

    Dimensions: L1300 * W750 * H1300MM

    Machine weight : 150KG


    Productivity: 6 and 16 string, 5 and 16 strings, strings 4 and 16, 3 and 16 series, about 2000 batteries / hour


    Welding parameters:

    model: TWSL-200

    power: 10KVA (max)

    Input Frequency: 50/60Hz

    Input voltage: 220VAC

    Input gas source: 7-8 Bar (kg / cm)

    Primary current: 5-30A

    Primary short-circuit current: 1500A

    The whole structure: Integrated structure

    Welding arm structure: Telescopic swing control

    Electrodes to the body distance: 100 mm (Scalable adjustable)

    Cylinder diameter: 20 mm

    The number of pulses : 0-9

    Pulse energy level: 0-99

    Automatic compensation range: + 40V - 40V

    Panel digital display: 7-segment LED display

    External dimensions : 445 * 224 * 343 mm

    Gross weight : 42 kg



    if you like to know more about the welder machine ,please click :lithium battery automatic spot welding

    if you want to know more other machine ,please click : low pressure injection machine
