Specification

single station vertical injection molding machine ,low pressure injection molding machine for connector

1 , Model : JX-900H-2

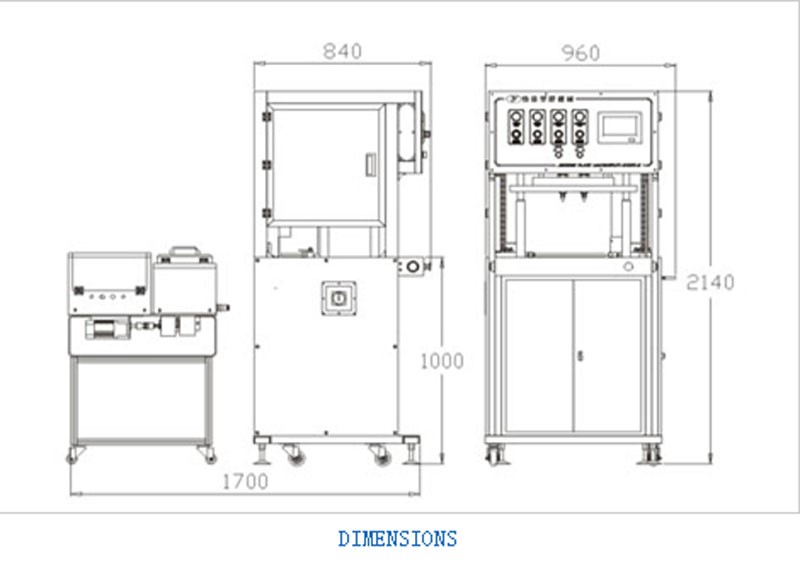

2 ,Size : 960x840x2140 mm

3 ,Weight : 450 kg

4 , Work station high : 1000 mm

5 , Plant view : 960x1770 mm

6 , Packing size : 1010x940 x2190 mm ,Packing weight :500 kg

7 , Melting tank : ( 5 liter )x2 or more

8 , Gun & Tip Angle : (36.4⁰ 60⁰ 90⁰ )

9 , Heated hose : JX-ZH-16-C x2 or more

10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz

11 ,Temperature Control Zones : 5/6 or more

12 , Temperature range : 70⁰C-260⁰C

13 , Max power (kw) : 9kw or more

14 , Working pressure :0.5 Mpa -0.8 Mpa

15 , Air consumptiom : 0.1m3/min

16 , Clamping device : air

17 , Clamping force : Max 10 ton

18 , Clamping stroke : 150 mm

19 , Control system : touch screen

20 , Standard mold set size (mm) : N/A

21 , Max mold set size (mm) : 400x200x180 mm

22 , Max part size (mm) : 200x90x10 mm

Feature

1 , Single station vertical injection system ,especially on the left and right parallel continuous wire outlet mold design is more reasonable and reliable .

2 , Console and sol system adopts the integral layout ,flexible use

3 , Console touch-screen display ,with muti-language PLC control system

4 , Glue gun is directly connected with sol cylinder by a hose ,compact structure ,stable plastic injection .

5 , Injection pressure adjustable ,DELTA temperature control module ,accurately monitor the temperature conditions .

6 , The hands switch clamping and safety grating ,emergency stop switch ,to ensure safe operation .

7 , The mold is convenient to replace ,workbench build product ejection device ,convenient to extract product .

Shenzhen Onetop Technology Co Ltd , is a manufacturer which combines R&D and marketing ,we have professional R&D team as well as proficient stuff ,and has been specializing in researching and producing high quality lithium battery machine for 10 years . Our main products ranges from 18650 battery pack assembly machine ,Power Battery PACK assembly machines ,Power Bank Assembly machine,Mobile Phone Battery assembly Machines,Battery safety test equipment,Injection molding machine,Molds, Molding materials, machine parts, etc

We keep in place with the word ,we adopt lastest technology and design ,our Onetop series battery machine stands out in the same industry area ,they are of national advanced technologycal level and have been identified by experts from Shenzhen Science & Technology and Information Bureau .Up to now ,we have obtained many inventions patents ,practical new patents ,and own independent intellectual property rights

.

With the increasing development ,We have created two workshops to manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines are now widely used in Mobile phone,Power bank,Laptop,Electric bikes,Electric vehicle,solar street lights,Solar energy storage,Banks,LED devices,Health Equipments ect,the low-pressure injection molding machines are now widely used in PCBs, sensor products, wiring harnesses, medical electronic products, etc. In addition, OEM/ODM services can be provided to customers worldwide. Our products enjoy high quality and guarantee all-weather after-sales service, thus winning our 70% market share.we look forward to cooperation with the customers all over the world .
