Specification

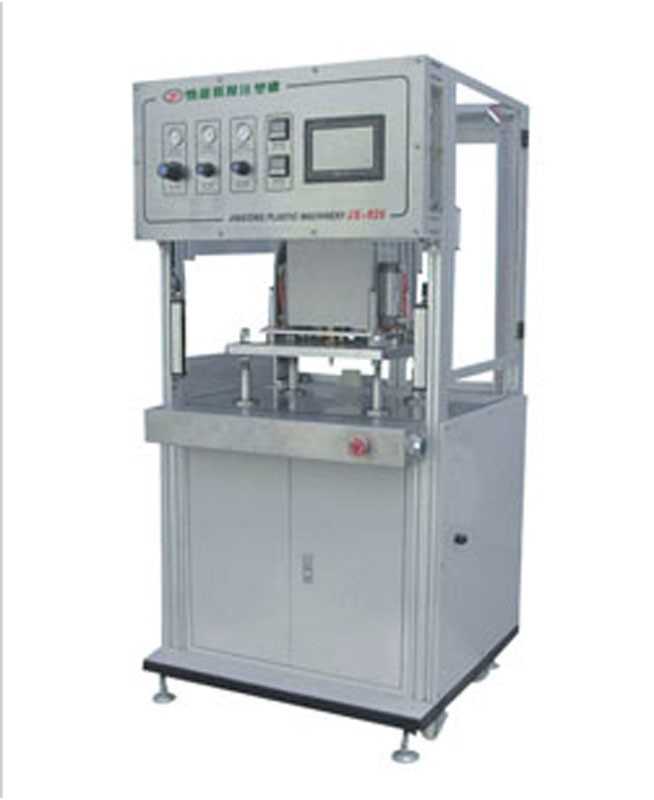

1 , Model : JX-920
2 ,Size : 890x810x1670 mm
3 ,Weight : 350 kg
4 , Work station high : 840 mm
5 , Plant view : 890X810 mm
6 , Packing size : 960x900 x1720 mm ,Packing weight :400 kg
7 , Melting tank : ( 3 liter )x1
8 , Gun & Tip Angle : (36.40 600 900 )
9 , Heated hose : N/A
10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz
11 ,Temperature Control Zones : 2
12 , Temperature range : 700C-2600C
13 , Max power (kw) : 4.5 kw
14 , Working pressure :0.5 Mpa -0.8 Mpa
15 , Air consumptiom : 0.1m3/min
16 , Clamping device :pneumatic/ air qver oil
17 , Clamping force : Max 10 ton
18 , Clamping stroke : 150 mm
19 , Control system : touch screen
20 , Standard mold set size (mm) : 230x120x150(25kg)
21 , Max mold set size (mm) : 300x200x150 mm
22 , Max part size (mm) : 100x90x18 mm / 60x50x18 mm
Feature
1 , Single station vertical injection system ,especially on the
left and right parallel continuous wire outlet mold design is more
reasonable and reliable .
2 , Console and sol system adopts the integral layout ,flexible use
3 , Console touch-screen display ,with muti-language PLC control
system
4 , Glue gun is directly connected with sol cylinder by a hose
,compact structure ,stable plastic injection .
5 , Injection pressure adjustable ,DELTA temperature control module
,accurately monitor the temperature conditions .
6 , The hands switch clamping and safety grating ,emergency stop
switch ,to ensure safe operation .
7 , The mold is convenient to replace ,workbench build product
ejection device ,convenient to extract product .
8 , Dual cylinders is optional glue injection is more stable , high
production efficency
9 , According to the human engineeing machine pedel design
convenient operation .
