Specification

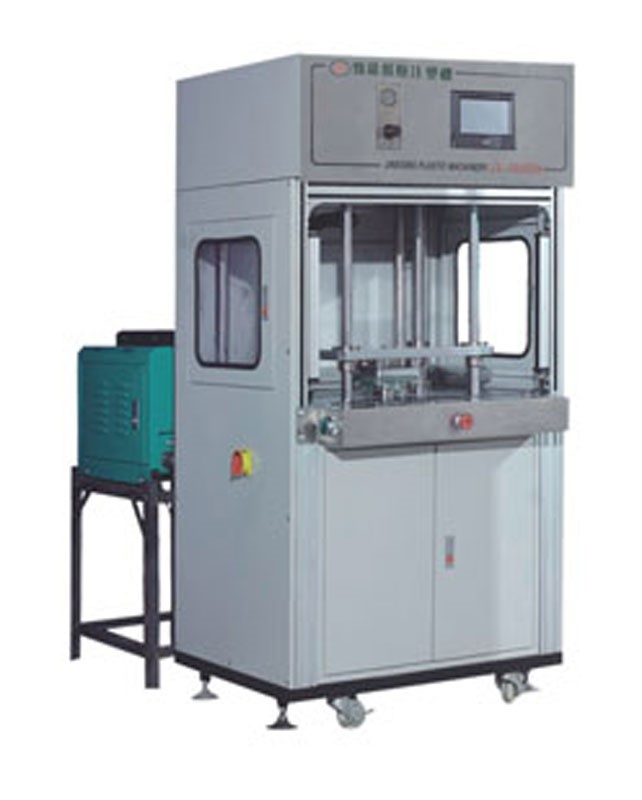

1 , Model : JX-1600DH

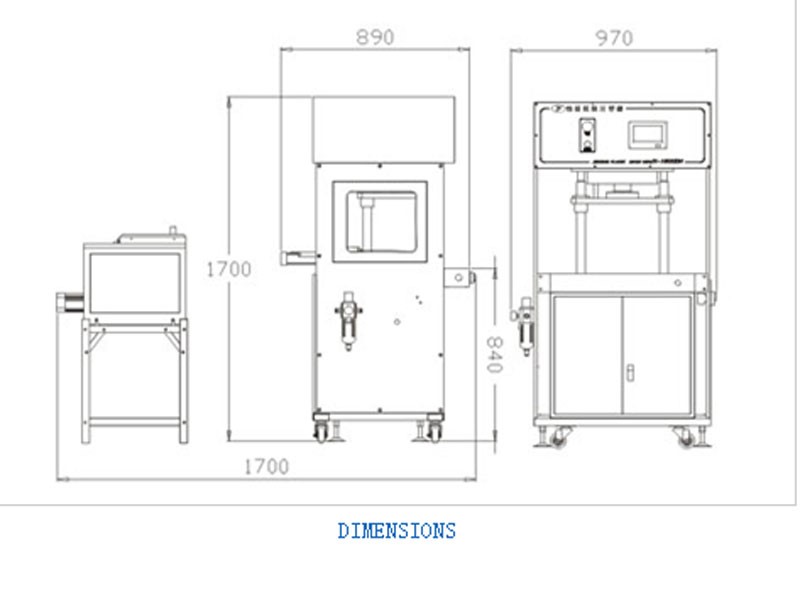

2 ,Size : 970x890x2050 mm

3 ,Weight : 400kg

4 , Work station high : 1020 mm

5 , Plant view :1730x1400 mm

6 , Packing size :1050x1000x2100 mm ,Packing weight :450 kg

7 , Melting tank : (5 liter )x1

8 , Gun & Tip Angle : (36.4⁰ 60⁰ 90⁰ )

9 , Heated hose : JX-ZH-16-Cx1

10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz

11 ,Temperature Control Zones : 5

12 , Temperature range : 70⁰C-260⁰C

13 , Max power (kw) : 6 kw

14 , Working pressure :0.5 Mpa -0.8 Mpa

15 , Air consumptiom : 0.1m3/min

16 , Clamping device : air qver oil

17 , Clamping force : Max 10 ton

18 , Clamping stroke : 150 mm

19 , Control system : touch screen

20 , Standard mold set size (mm) : 230x150x303(75kg)

21 , Max mold set size (mm) : 300x200x303 mm

22 , Max part size (mm) : 100x90x18 mm

Feature

1 , Single station vertical injection system ,especially on the left and right parallel continuous wire outlet mold design is more reasonable and reliable .

2 , Console and sol system adopts the integral layout ,flexible use

3 , Console touch-screen display ,with muti-language PLC control system

4 , Glue gun is directly connected with sol cylinder by a hose ,compact structure ,stable plastic injection .

5 , Injection pressure adjustable ,DELTA temperature control module ,accurately monitor the temperature conditions .

6 , The hands switch clamping and safety grating ,emergency stop switch ,to ensure safe operation .

7 , The mold is convenient to replace ,workbench build product ejection device ,convenient to extract product .

8 , Dual cylinders is optional glue injection is more stable , high production efficency

9 , According to the human engineeing machine pedel design convenient operation .
