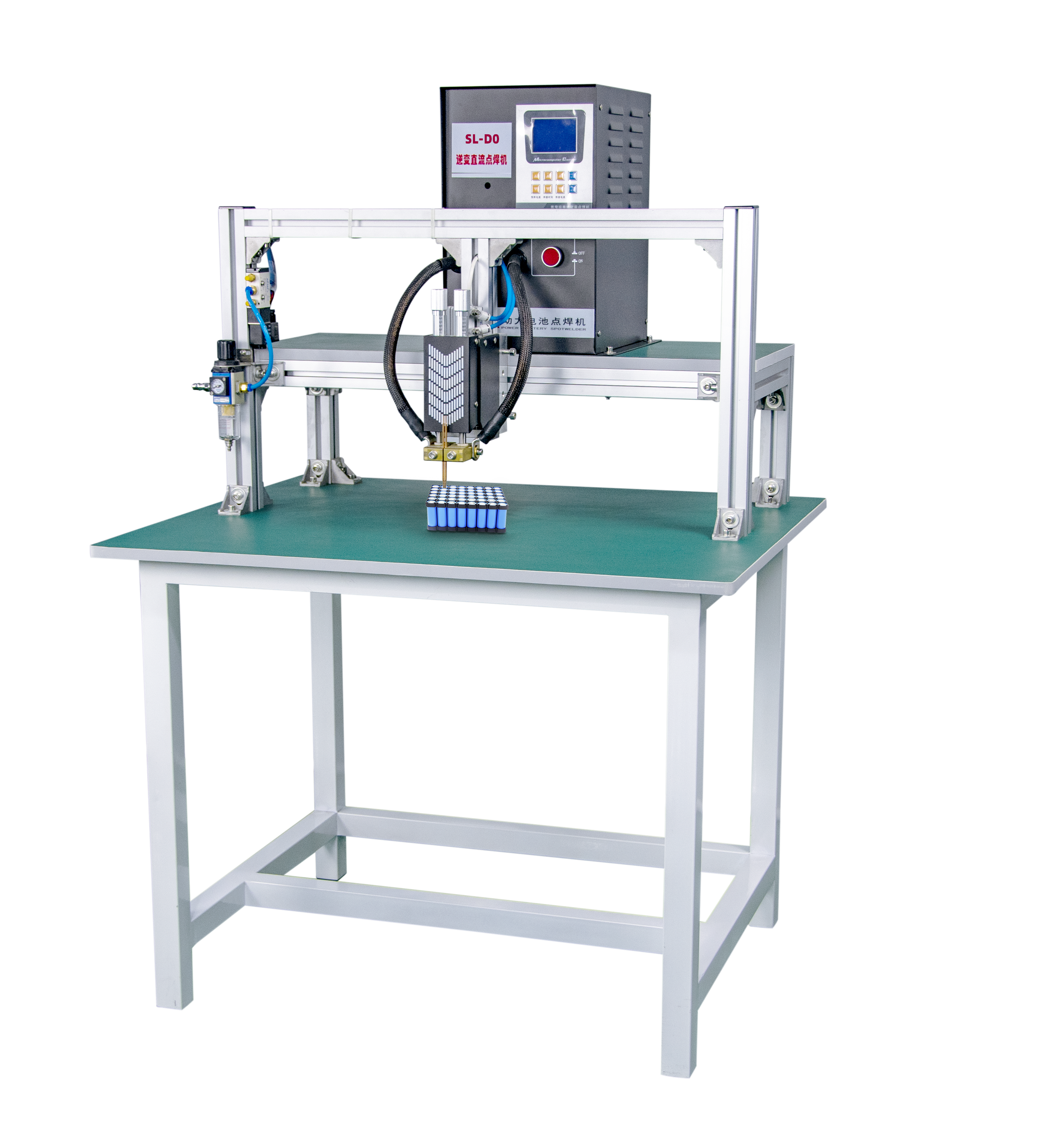

18650 26650 32650 Spot Welding Machine for lithium ion battery pack
Function description:
Power battery pack automatic spot welding machine, mainly used for
spot welding of modular lithium battery packs such as NB/Power
Tool/Gardening Tool/High Power/storage power station
battery/electric...
Product Features:
●Microcomputer control, large LCD screen display, graphical display
of current working status, English comment
● Digitize the welding parameters, the keyboard operation is clear
and clear, convenient and fast
● Welding voltage locking technology to prevent grid pressure
fluctuations from affecting welding current
●The welding pulse width is adjustable, the welding spatter is
small, and the solder joints are not discolored.
●Can realize single pulse and double pulse and multi pulse welding
● can store 10 welding specifications
●With two-stage current monitoring and comparison function, the
current abnormal sound and light alarm, effectively prevent the
occurrence of false welding phenomenon
●With 5-digit counter, calculate the number of successful welding,
and also set the counting alarm, prompting to repair the welding
pin
● With fault self-diagnosis function, display corresponding fault
points, convenient for maintenance
| Technical Parameters | |
| Power supply: | AC 220V/380V±10% 50Hz±2Hz |
| Air pressure: | 0.5-0.6Mpa |
| Nickel thickness | 0.08-0.3mm |
| Machine weight: | 100KG |
| Dimensions: | 350L x 180W x 280H (mm) |
| Storage capacitor: | 9000uf |
| Transformer output maximum power: | 25 KVA |
| Output maximum short circuit current: | 8000A |
| Pre-welding voltage: | 80.0V-330V adjustable, accuracy 0.5V |
| Welding voltage: | 80.0V-330V adjustable, accuracy 0.5V |
| Welding time: | 1.0ms - 20.0ms adjustable, accuracy 0.1ms |
