Ultrasonic Aluminum Wire Welding Machine for Lithium Battery
Product Application
The basic working principle of the equipment:
After the module assembly process is completed, the equipment is
used to automatically load the system,
and then sent to the welding area through the automatic feeding
system. The welding head system
performs ultrasonic welding according to the setted welding
parameters and position. After the welding is
completed, the module is sent to the designated position
automaticly by the feeding system, and the
equipment operator takes out the welded module and sends it to the
next production process.
Equipment application:
Mainly used for electrical connection of power battery module cell
and busbar,Applicable aluminum wire diameter range is 125~500um
| Equipment Specifications |
| Welding area: | 650 mm in X direction * 650 mm effective stroke in Y direction
(standard) |
| Z axis: | maximum travel distance 60 mm, 1.25 μm resolution |
| Rotary axis: | ±220 degrees, 0.08 degree resolution |
| Power requirements: | 220V AC, 50/60 Hz |
| Power consumption: | 3000W |
| Compressed air: | 0.5pla |
| Display: | 17-inch color plane display |
| Working surface height: | 1150 mm from the ground |
| Occupied size: | 1300 mm long; 1300 mm wide: 1650 mm high (without warning lights) |
| Net weight: | 500 kg |
| Heavy wire horn: | Rotary, standard front cutter |
| Transducer: | Standard 60KHz, other frequencies can be manufactured according to
customers' requirements |
| Welding pressure: | 50-1500 grams |
| Feed wire system: | Motor control wire feeder with optical encoder |
| Lack of wire detection: | wire feeding detection |
| Maximum arc height: | 40 mm |
| Minimum wire length detection: | 2mm feed wire |
| Spool size: | 50-120 mm OD; 22-45 mm width; 10-11 mm ID |
| Image recognition: | optics/lighting |
| Visual System: | XK Image Recognition System |
| Communication: | IO communication, Ethernet communication |

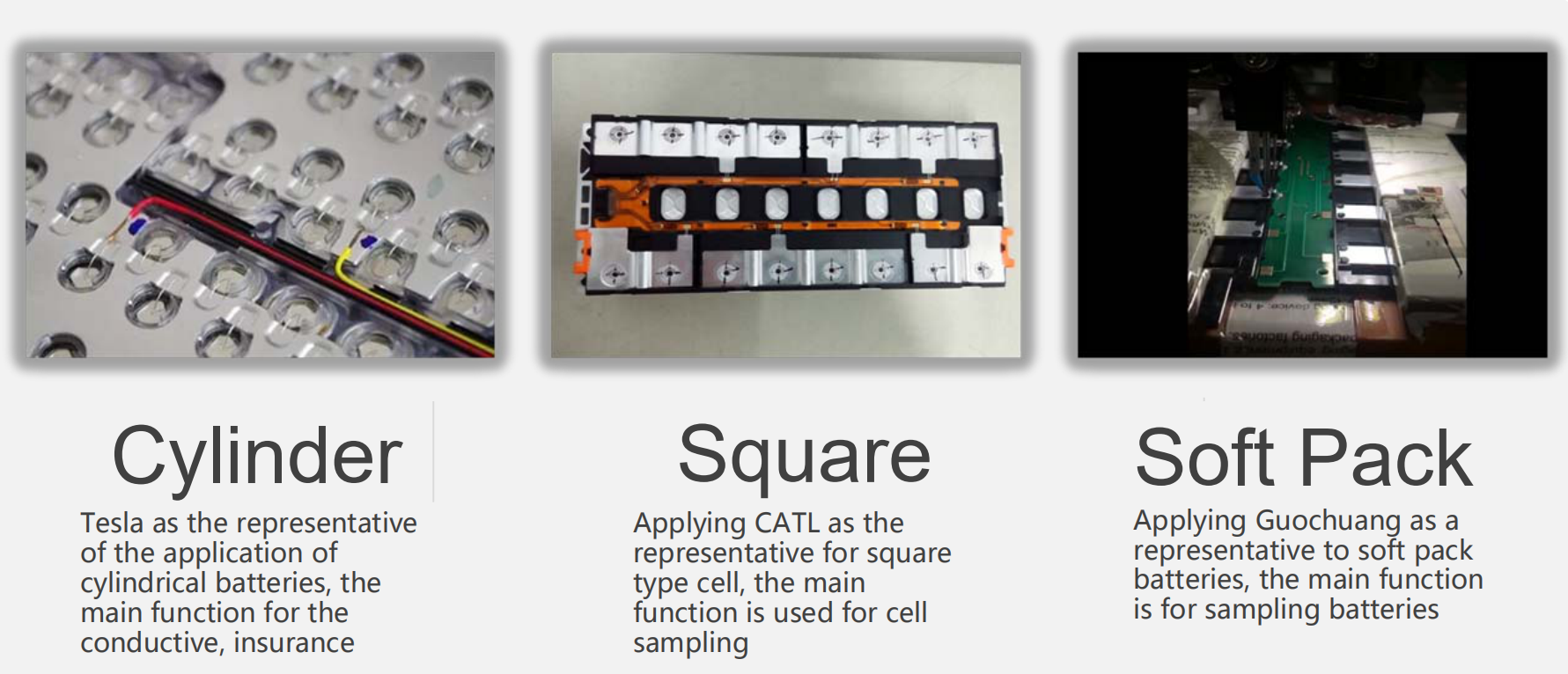

Threemajorbatteryweldingtypesof
aluminumwirebonding
WireBondingProcess
Customer Cases
IndustryApplicationGalleries

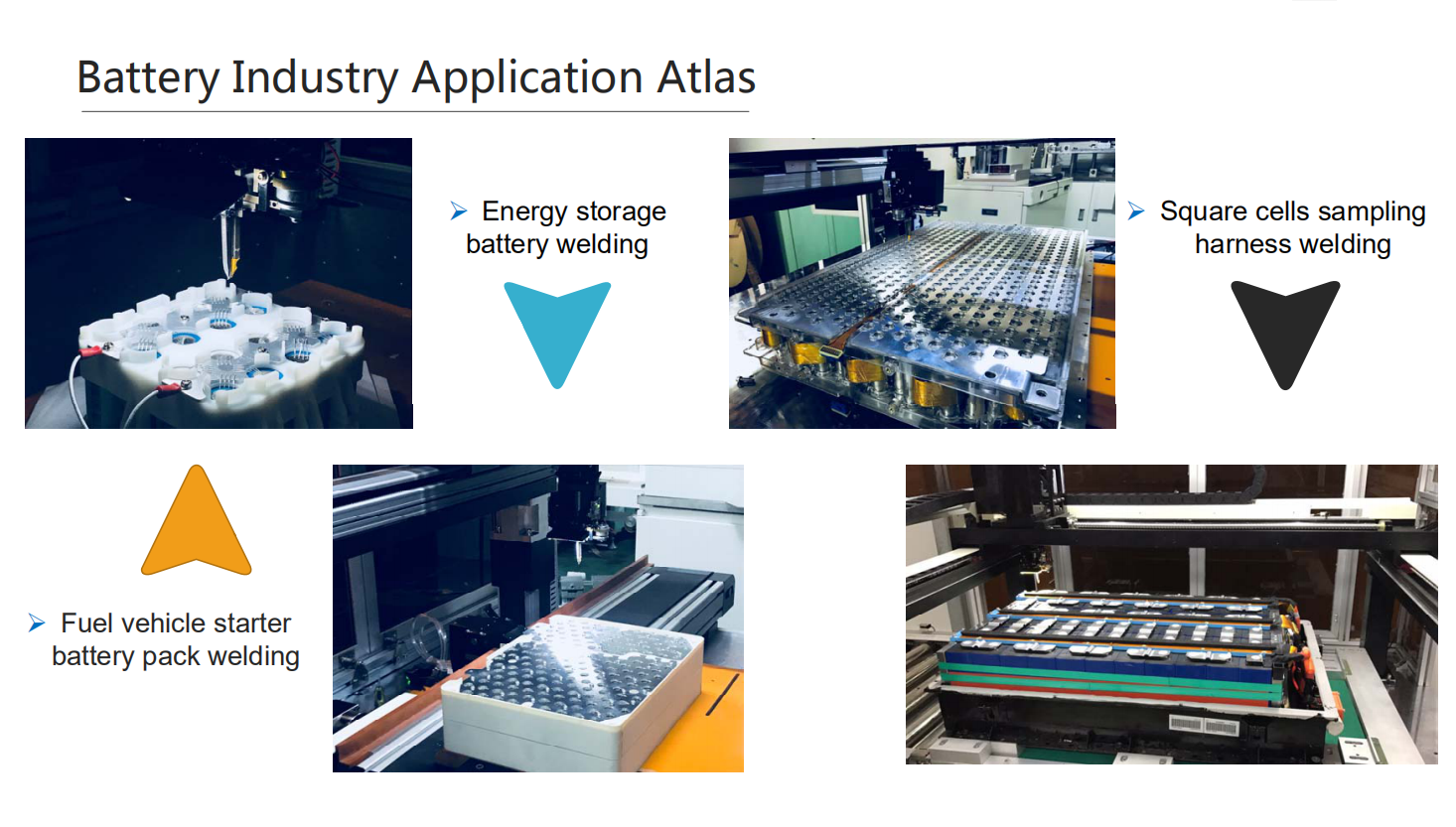

BatteryIndustryApplicationAtlas
