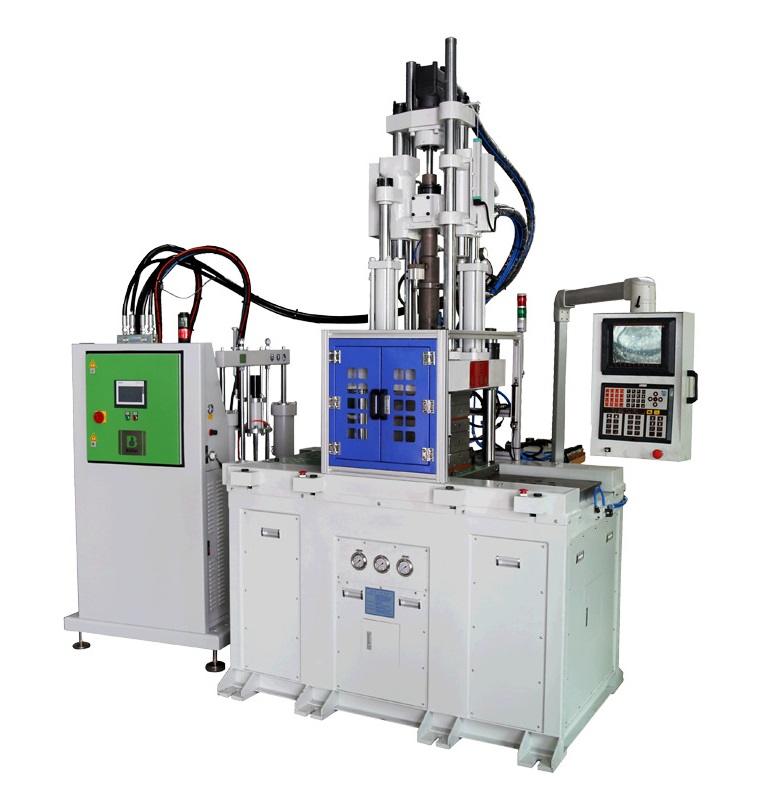

High Quality Eyeglass Silicone Nose Pads LSR Machine
Liquid/Silicone vertical plastic injection molding making machine
Machine Features
1. High-precision injection control system.
2. Double alloy barrel, high abrasion resistance.
3. Special barrel for liquid silicone rubber.
4. Special screw for liquid silicone rubber.
5. Special cooling system for liquid silicone rubber.
6. Oil motor, large torque, fast blanking.
7. Closed loop control device.
8. Variable power saving device.
9. The pressure and flow of the hydraulic circuit can be controlled
according to the changes of each section.
10. High stability, high precision temperature control.
11. Electrical, mechanical, and hydraulic triple mold protection
devices make molds and people safer.
| Type | Model | Unit | JTT-850D(DM) |
| Injection system | Screw diameter | mm | 35 40 45 50 |
| Injection pressure | kg/cm2 | 2171 1663 1314 1064 |
| Theoretical injection capacity | cm3 | 135 176 223 275 |
| Injection volume | g/oz | 123/4.3 160/5.7 203/7.2 250/8.9 |
| Injection rate | cm3/sec | 82 107 135 167 |
| Screw stroke | mm | 140 |
| Screw speed | rpm | 0-200 |
| Nozzle contact force | tons | 2.9 |
| Nozzle stroke | mm | 220 |
| Number of temperature control sections | - | 4 |
| Hopper capacity | L | 30 |
| Clamping system | Clamping force | tons | 85 |
| Mold opening force | tons | 10.5 |
| Lock template size | mm | 740*500 |
| Die column spacing | mm | 560x320 |
| Minimum mold thickness | mm | 250/200 |
| Mold opening stroke | mm | 250 |
| Maximum mold opening distance | mm | 500/450 |
| Ejection force | tons | 3.3/3.5 |
| Ejection stroke | mm | 75/145 |
| Sliding mode system | Sliding stroke | mm | 500 |
| Maximum mold weight | kg | 200 |
| Sliding mode positioning accuracy | mm | ±0.02 |
| Hydraulic power system | Maximum hydraulic pressure | kg/cm2 | 140 |
| Pump discharge volume | L/min | 76 |
| Actuating oil volume | L | 180 |
| Cooling water consumption | / hr | 1200-1500 |
| Hydraulic motor power | KW | 11 |
| Electric heating power | KW | 5.6 |
| Total power | KW | 16.6 |
| Other | Machine weight | tons | 4.5/4.8/5 |
| Machine size | M | 2.31*1.30*3.01 |
| 1.796*2.362*3.01 |
| Shipping weight | tons | 4.7/5.0/5.2 |
| Shipping size | M | 2.41*1.40*3.01 |
| 1.90*2.47*3.11 |

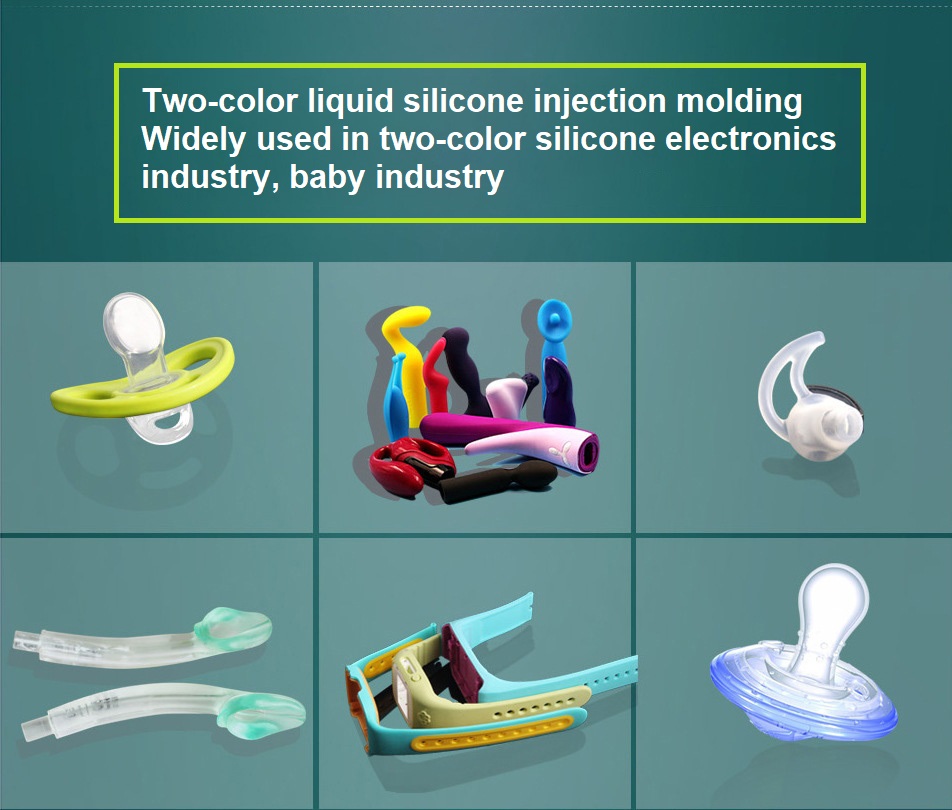

Application
Two-color liquid silicone injection molding is widely used in the
infant industry, automobile seal industry, medical industry and
other silicone products. Metal parts, PC parts, PPSU parts, PA
parts, glass parts
Company Information
Shenzhen Onetop Technology Co Ltd , is a manufacturer which
combines R&D and marketing ,we have professional R&D team
as well as proficient stuff ,and has been specializing in
researching and producing high quality lithium battery machine for
10 years . Our main products ranges from 18650 battery pack
assembly machine ,Power Battery PACK assembly machines ,Power Bank
Assembly machine,Mobile Phone Battery assembly Machines,Battery
safety test equipment,Injection molding machine,Molds, Molding
materials, machine parts, etc
We keep in place with the word ,we adopt lastest technology and
design ,our Onetop series battery machine stands out in the same
industry area ,they are of national advanced technologycal level
and have been identified by experts from Shenzhen Science &
Technology and Information Bureau .Up to now ,we have obtained many
inventions patents ,practical new patents ,and own independent
intellectual property rights
.

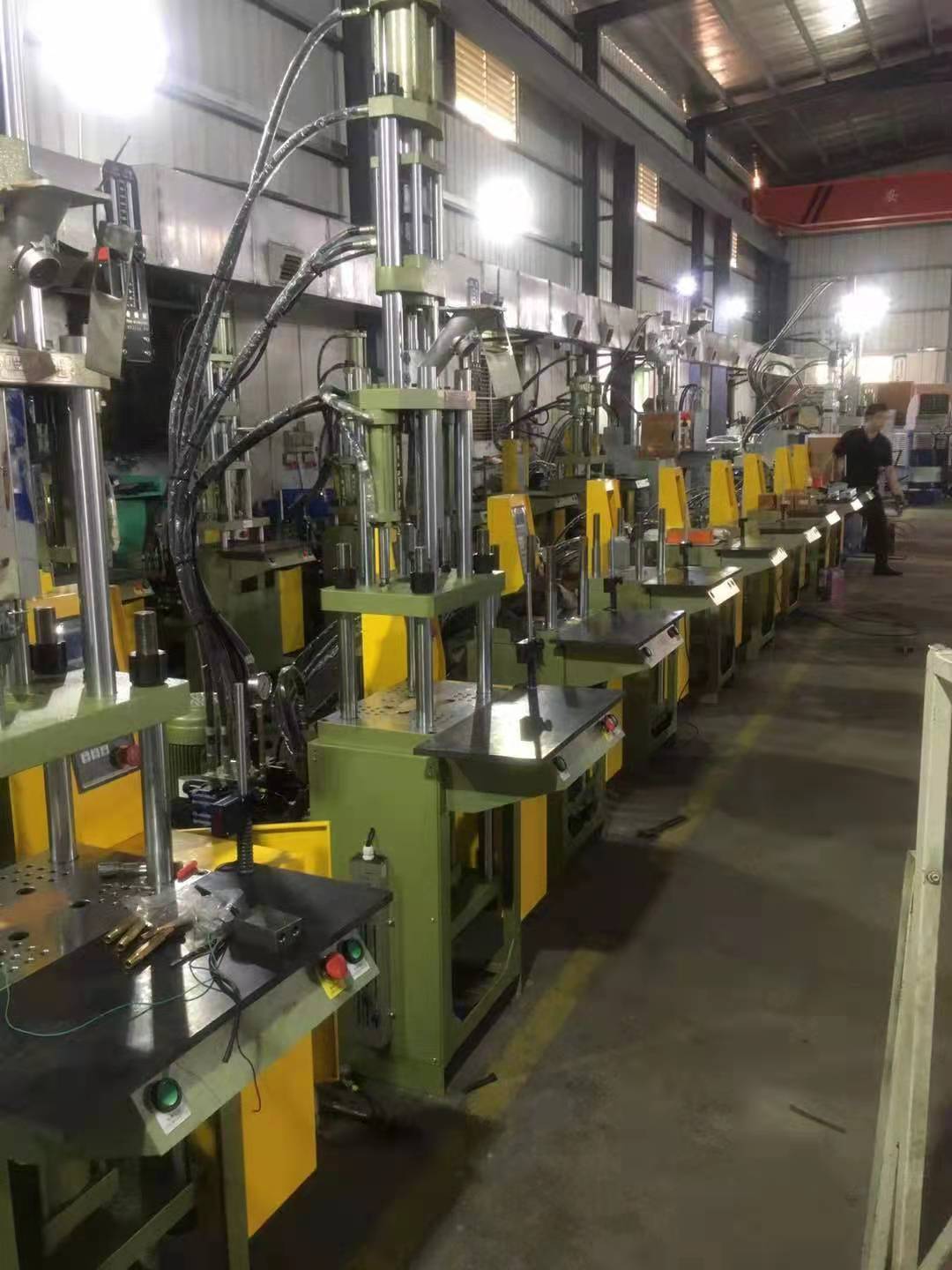

With the increasing development ,We have created two workshops to
manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines
are now widely used in Mobile phone,Power bank,Laptop,Electric
bikes,Electric vehicle,solar street lights,Solar energy
storage,Banks,LED devices,Health Equipments ect,the low-pressure
injection molding machines are now widely used in PCBs, sensor
products, wiring harnesses, medical electronic products, etc. In
addition, OEM/ODM services can be provided to customers worldwide.
Our products enjoy high quality and guarantee all-weather
after-sales service, thus winning our 70% market share.we look
forward to cooperation with the customers all over the world .
