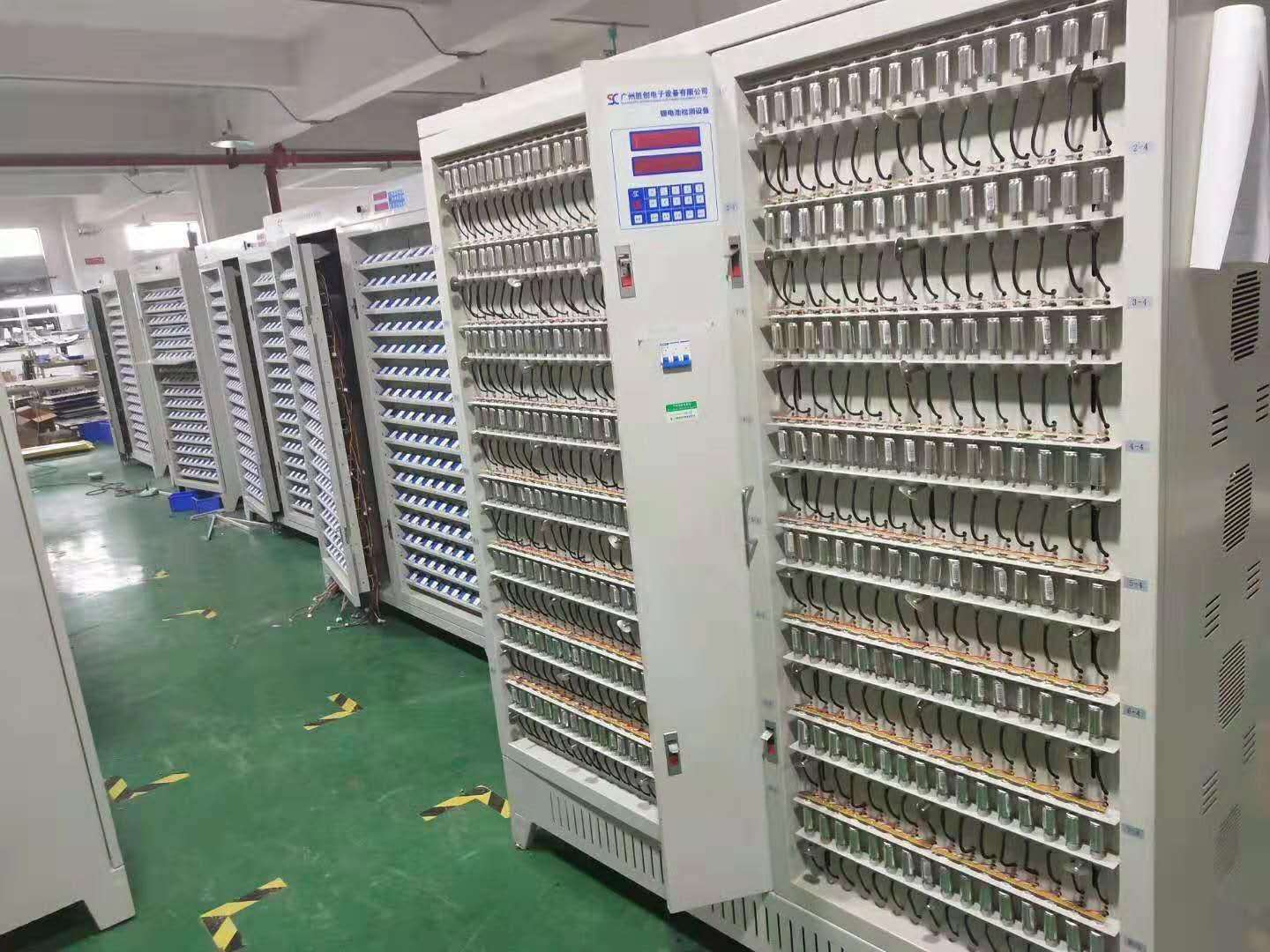

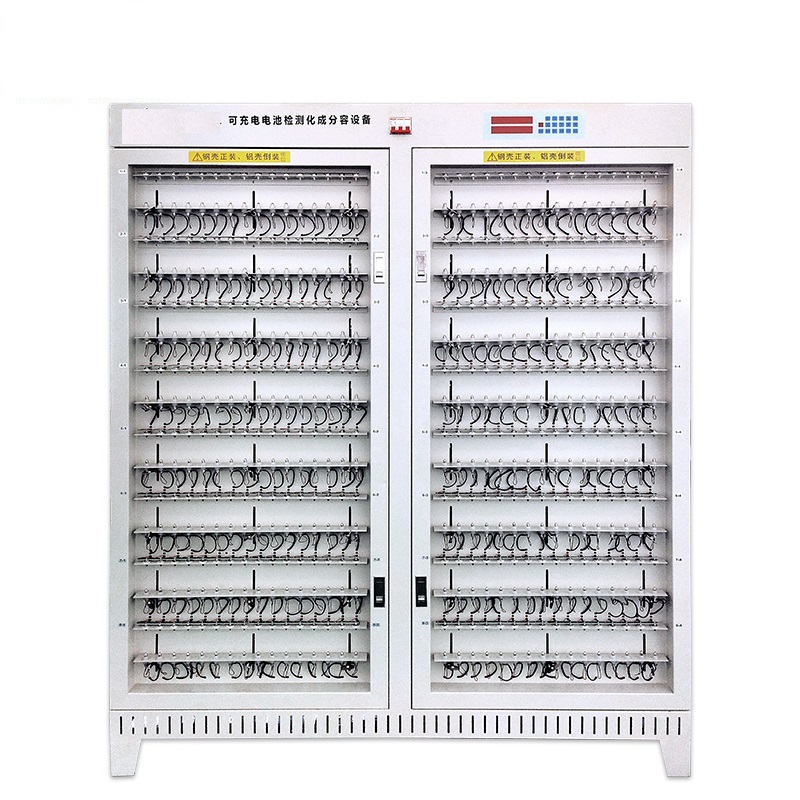

512 Channels 5V 3A 6A Cylindrical Cell 18650 Battery Analyser
Battery Capacity Tester
1.Cylindrical Cell Battery Capacity Analyzer mainly constitute by
the computer system and control software, communication interface
and battery detecting cabinet. Battery detecting cabinet comprises
a fixture and placed the plate body of the fixture, charging,
constant current and constant voltage source discharge constant
current source, storage control circuit, current sampling circuit,
voltage sampling circuit, the main control CPU, data memory,
microcontroller programming and control panel.
2. Each battery test station has independent constant current and
constant voltage power.
3. Using a unique constant current constant voltage power, constant
current to constant voltage switch without impact, especially
suitable for lithium ion battery charging and discharging
requirements.
4. Per device consists of a set of completely independent MCU
control system.
5. Specially used for chemical and capacity separation of
cylindrical lopo battery.
Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3
A, 0-5 A, 0-20 A, 0-30 A, etc.
Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V,
0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.
Technical parameter
| Number of device channels | 512 channels (dual-screen control) |
| Constant current range | 0.015~5A, resolution 1mA |
| Current Measurement Accuracy | ±0.1%FS |
| Sampling current accuracy | ±0.1%FS |
| Voltage measurement range | 0~5V, resolution 1mV |
| Accuracy of voltage measurement | ±0.1%FS |
| Charge&discharge voltage range | Charging: 0~4.5V, Discharging: 4.5~2V (External wiring length
cannot exceed 2.5 meters) |
| Constant voltage setting range | 3 ~4.5V |
| Constant pressure setting accuracy | ±0.1%FS |
| Time range | 0~30000 minutes/step, accuracy: ±0.1% |
| Cooling method | air cooling, upper air |
| Fixture form | Fixture |
| Working environment | Temperature: 0 ~ 40 °C, relative temperature ≤ 85% (no condensation
of water vapor) |
| Dimensions | 1600mm (length)×550mm (width)×1840mm (high) |
| Working power | three-phase four-wire system, AC380V ± 15 %, 50HZ |
| Full load power consumption | ≤14KW |
Lithium battery PACK assembly process
Our Company
Shenzhen Onetop Technology Co Ltd , is a manufacturer which
combines R&D and marketing ,we have professional R&D team
as well as proficient stuff ,and has been specializing in
researching and producing high quality lithium battery machine for
10 years . Our main products ranges from 18650 battery pack
assembly machine ,Power Battery PACK assembly machines ,Power Bank
Assembly machine,Mobile Phone Battery assembly Machines,Battery
safety test equipment,Injection molding machine,Molds, Molding
materials, machine parts, etc
We keep in place with the word ,we adopt lastest technology and
design ,our Onetop series battery machine stands out in the same
industry area ,they are of national advanced technologycal level
and have been identified by experts from Shenzhen Science &
Technology and Information Bureau .Up to now ,we have obtained many
inventions patents ,practical new patents ,and own independent
intellectual property rights
.
With the increasing development ,We have created two workshops to
manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines
are now widely used in Mobile phone,Power bank,Laptop,Electric
bikes,Electric vehicle,solar street lights,Solar energy
storage,Banks,LED devices,Health Equipments ect,the low-pressure
injection molding machines are now widely used in PCBs, sensor
products, wiring harnesses, medical electronic products, etc. In
addition, OEM/ODM services can be provided to customers worldwide.
Our products enjoy high quality and guarantee all-weather
after-sales service, thus winning our 70% market share.we look
forward to cooperation with the customers all over the world .
Cooperated customer
FAQ
1. Where is your main market?
We are based in Shenzhen, China, sell to Domestic
Market(20.00%),Southern Europe(20.00%),Western
Europe(20.00%),Eastern Europe(20.00%),North America(20.00%).
2. How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can i buy from you?
Lithium Battery Assembly Automation Line,Double sided automatic
spot welder,Battery aging cabinet,Battery sorter,Battery
comprehensive tester
4. Why should i buy from yours not from other suppliers?
We have a strong technical R&D team and have been working in
the lithium battery assembly and manufacturing industry for many
years with rich experience. The company now has a variety of
specifications and models of machinery and equipment, various
series
5. What services can you provide?
Accepted Delivery Terms: FCA,FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
