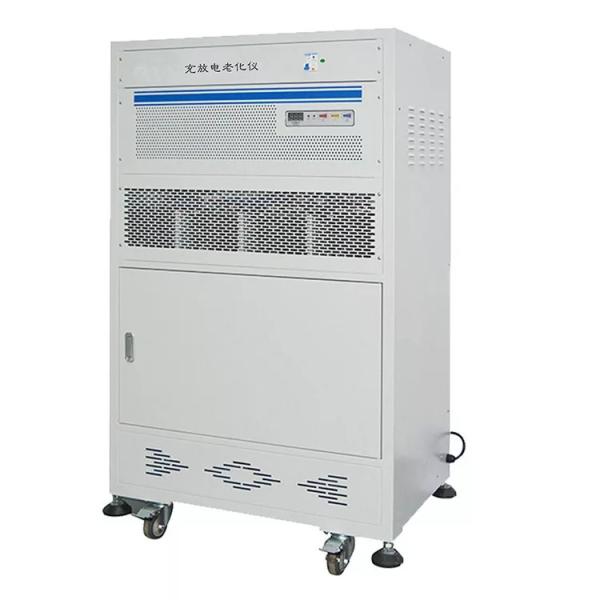

100V Battery Pack Assembly Life Test Charging And Discharging
Tester
Features
The Battery Pack Charge and Discharge Aging Machine is mainly used
for the charge and discharge cycle test of the finished lithium
battery.
The test items include: battery charge protection voltage,
discharge protection voltage, battery capacity, etc.; the equipment
has 4 test steps of charging, discharging, shelving, and cycling.
You can make the battery test in accordance with the set process.
1) Single channel control technology, each channel is independent
of each other
2) Anti-reverse connection protection function, data is
automatically saved in real time
3) Two communication methods: serial port and network
4) Data output to Excel, TXT
The test functions are:
1) Battery charge protection voltage
2) Discharge protection voltage
3) Battery capacity
Machine Specification
| No | Item | Item | |
| 1 | Power supply | AC220V 50Hz |
| 2 | Power | 2000W |
| 3 | Voltage | Test range | 0-100V |
| 4 | Accuracy | ±(0.2% of reading +0.2% of range) |
| 5 | Current | Charge range | 200-20000mA |
| 6 | Charge accuracy | ±(0.2% of reading +0.2% of range) |
| 7 | Discharge range | 200-40000mA |
| 8 | Discharge accuracy | ±(0.2% of reading +0.2% of range) |
| 9 | Charge | Constant voltage cut-off current | Min 200mA |
| 10 | Capacity | Accuracy | ±1‰ |
| 11 | Power | Discharge power | ≤4000w |
| 12 | Time | Inspection time | ＜2s |
| 13 | Timing range | 0-999 h/steps |
| 14 | Data record interval | ≥5s |
| 15 | Channels per box | 1 |
| 16 | Charge | Charge mode | Constant current and constant voltage charging |
| 17 | Cut-off condition | Voltage, current, relative time, overcharge protection |
| 18 | Discharge | Discharge mode | Constant current discharge |
| 19 | Cut-off condition | Voltage, relative time, overcharge protection |
| 20 | Cycle | Cycle test range | 1-999 times |
| 21 | Max steps in one cycle | 100 |
| 22 | Voltage current sample | 4 wires |
| 23 | Database | SQL |
| 24 | Communication | TCP/IP, Serial port |
| 25 | Data output | EXCEL, TXT |
| 26 | Size | 800*520*1370mm |
| 27 | Battery cabinet size | 720*400*420mm |
Machine scope of application
The finished battery charge and discharge machine can used for test
Lithium batteries,polymer batteries,lead-acid batteries ect,we have
30V/70V/100V for options
Our Company
Shenzhen Onetop Technology Co Ltd , is a manufacturer which
combines R&D and marketing ,we have professional R&D team
as well as proficient stuff ,and has been specializing in
researching and producing high quality lithium battery machine for
10 years . Our main products ranges from 18650 battery pack
assembly machine ,Power Battery PACK assembly machines ,Power Bank
Assembly machine,Mobile Phone Battery assembly Machines,Battery
safety test equipment,Injection molding machine,Molds, Molding
materials, machine parts, etc
We keep in place with the word ,we adopt lastest technology and
design ,our Onetop series battery machine stands out in the same
industry area ,they are of national advanced technologycal level
and have been identified by experts from Shenzhen Science &
Technology and Information Bureau .Up to now ,we have obtained many
inventions patents ,practical new patents ,and own independent
intellectual property rights
.
With the increasing development ,We have created two workshops to
manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines
are now widely used in Mobile phone,Power bank,Laptop,Electric
bikes,Electric vehicle,solar street lights,Solar energy
storage,Banks,LED devices,Health Equipments ect,the low-pressure
injection molding machines are now widely used in PCBs, sensor
products, wiring harnesses, medical electronic products, etc. In
addition, OEM/ODM services can be provided to customers worldwide.
Our products enjoy high quality and guarantee all-weather
after-sales service, thus winning our 70% market share.we look
forward to cooperation with the customers all over the world .
Lithium battery pack assembly process
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days
*Customized Machine: 30-35 days
Our Service
● Pre-sales
1) Inquiry and consulting support. All will be replied within 12
hours.
2) View our Factory and testing the machine, demonstrate how the
machine work.
● After-Sales
1) Training how to install the machine, training how to use the
machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
