High Precision Lower Price Power Battery Equipment 18650 26650
32650 lithium ion battery spot welding machine

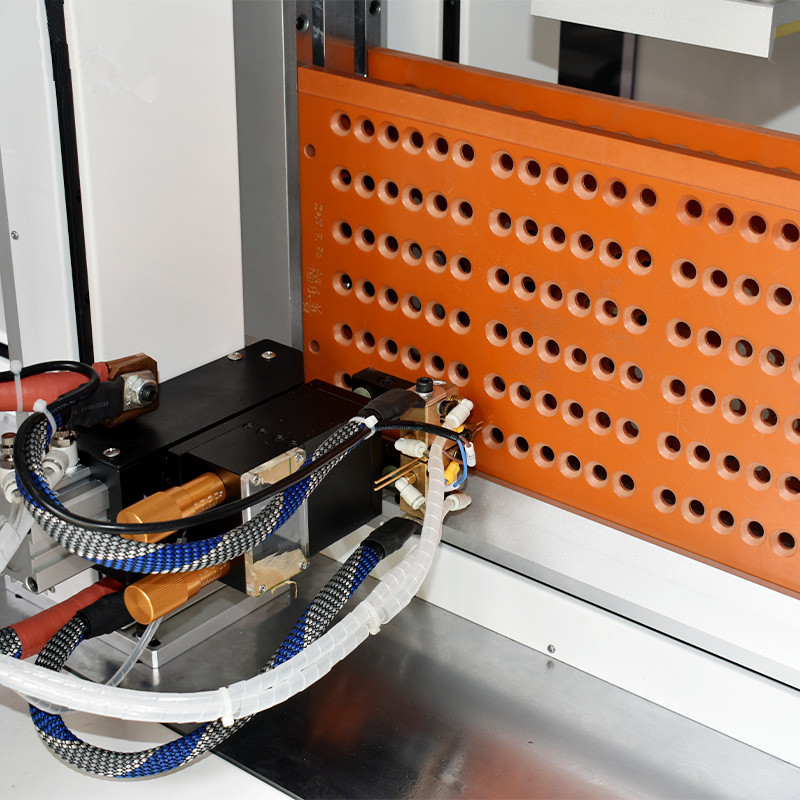

18650 26650 32650 CNC Both-side Automatic Spot Welding Machine
Function description: Power battery pack automatic spot welding
machine, mainly used for spot welding of modular lithium battery
packs such as NB/Power Tool/Gardening Tool/High Power/storage power
station battery/electric...
Performance characteristics
1.Suitable for spot welding of nickel sheets of power battery
packs.
2.The fixture design is user-friendly, which facilitates the
placement of nickel sheets.
3.Fully automatic design, after the fixture is placed in place, the
machine automatically starts spot welding.
4.Multiple sets of spot welding programs can be preset and recalled
at any time.
5.The spot welding program route can be arbitrarily designed
without specific requirements.
6.The product quality is stable and the appearance is uniform.
| Power supply: | 220V, 50HZ, 3.6Kw |
| Use pressure: | 0.3-0.8Mpa |
| X Module travel: | 0-350MM maximum 18 cores |
| Y Module travel: | 0-135MM maximum 7 cores |
| X-axis emission batteries: | 18PCS within |
| Y-axis discharge batteries Number: | Within 7 lines |
| Dimensions: | L1300 * W750 * H1300MM |
| Machine weight: | 150KG |
| Productivity: | 6 & 16 string, 5 & 16 strings, strings 4 & 16, |
| 3 & 16 series, about 2000 batteries/ hour |
| Power: | 10KVA (max) |
| Input Frequency: | 50/60Hz |
| Input voltage: | 220VAC |
| Input gas source: | 7-8 Bar (kg / cm) |
| Primary current: | 5-30A |
| Primary short-circuit current: | 1500A |
| The whole structure: | Integrated structure |
| Welding arm structure: | Telescopic swing control |
| Electrodes to the body distance: | 100 mm (Scalable adjustable) |
| Cylinder diameter: | 20 mm |
| The number of pulses: | 0-9 |
| Pulse energy level: | 0-99 |
| Automatic compensation range: | + 40V - 40V |
| Panel digital display: | 7-segment LED display |
| External dimensions: | 445 * 224 * 343 mm |
| Gross weight: | 42 kg |
Our Company
Shenzhen Onetop Technology Co Ltd is a manufacturer which combines
R&D and marketing ,we have professional R&D team as well as
proficient stuff ,and has been specializing in researching and
producing high quality lithium battery machine for 10 years . Our
main products ranges from 18650 battery pack assembly machine
,Power Battery PACK assembly machines ,Power Bank Assembly
machine,Mobile Phone Battery assembly Machines,Battery safety test
equipment,Injection molding machine,Molds, Molding materials,
machine parts, etc
We keep in place with the word ,we adopt lastest technology and
design ,our Onetop series battery machine stands out in the same
industry area ,they are of national advanced technologycal level
and have been identified by experts from Shenzhen Science &
Technology and Information Bureau .Up to now,we have obtained many
inventions patents ,practical new patents and own independent
intellectual property rights
.

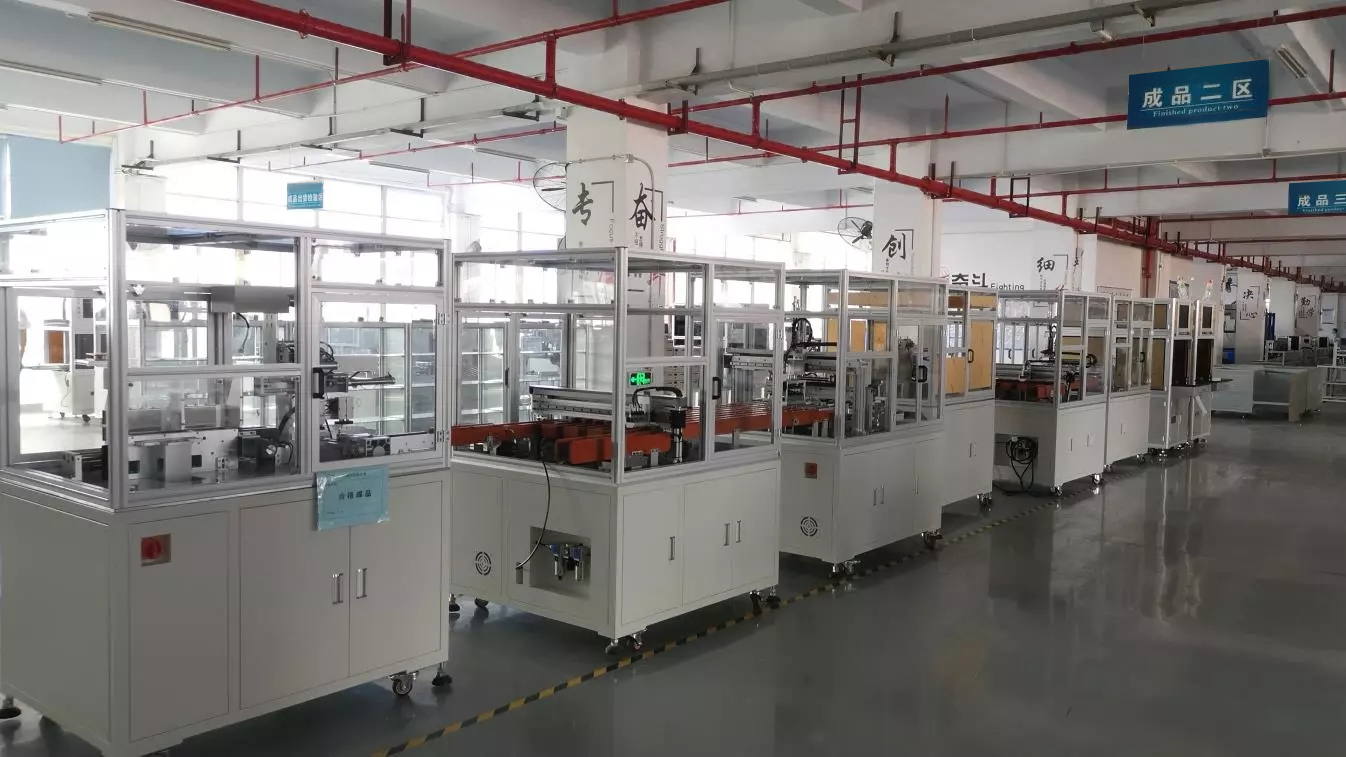

With the increasing development ,We have created two workshops to
manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines
are now widely used in Mobile phone,Power bank,Laptop,Electric
bikes,Electric vehicle,solar street lights,Solar energy
storage,Banks,LED devices,Health Equipments ect,the low-pressure
injection molding machines are now widely used in PCBs, sensor
products, wiring harnesses, medical electronic products, etc. In
addition, OEM/ODM services can be provided to customers worldwide.
Our products enjoy high quality and guarantee all-weather
after-sales service, thus winning our 70% market share.we look
forward to cooperation with the customers all over the world

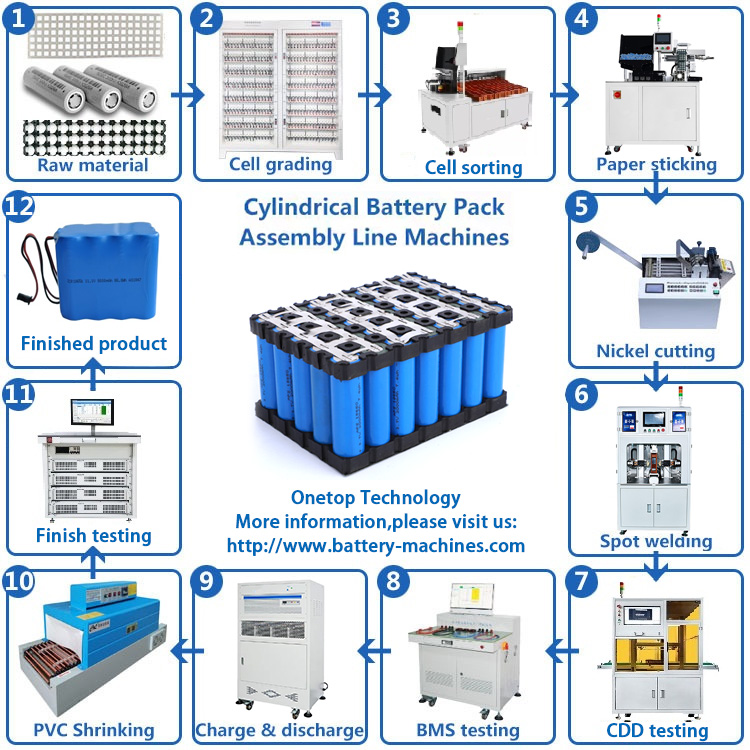

Automatic Battery PACK Assembly Line Machine
Exhibition
Packing&Delivery
FAQ
1. Where is your main market?
We are based in Shenzhen, China, sell to Domestic
Market(20.00%),Southern Europe(20.00%),Western
Europe(20.00%),Eastern Europe(20.00%),North America(20.00%).
2. How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can i buy from you?
Lithium Battery Assembly Automation Line,Double sided automatic
spot welder,Battery aging cabinet,Battery sorter,Battery
comprehensive tester
4. Why should i buy from yours not from other suppliers?
We have a strong technical R&D team and have been working in
the lithium battery assembly and manufacturing industry for many
years with rich experience. The company now has a variety of
specifications and models of machinery and equipment, various
series
5. What services can you provide?
Accepted Delivery Terms: FCA,FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
